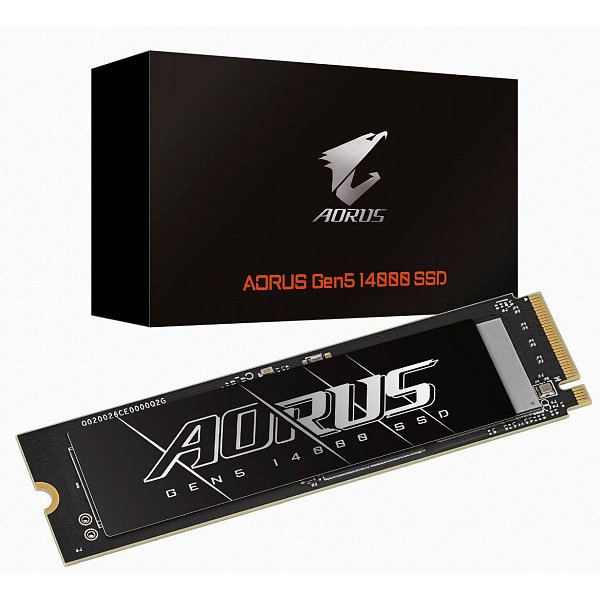

Gigabyte AORUS 14000 SSD 1TB M.2 NVMe Gen5, 13600/10200 MBps

Popis

Key Feature

Form Factor: M.2 2280
Interface: PCI-Express 5.0 x4, NVMe 2.0
Total Capacity: 1000GB*
Sequential Read Speed : up to 13,600 MB/s**
Sequential Write speed : up to 10,200 MB/s**
Warranty: Limited 5-years
Must be used with Motherboard Heatsink

Interface
PCI-Express 5.0x4, NVMe 2.0
Form Factor
M.2 2280
Total Capacity
1000GB
NAND
3D TLC NAND Flash
External DDR Cache
LPDDR4 2GB
Sequential Read speed
Up to 13,600 MB/s
Sequential Write speed
Up to 10,200MB/s
Dimension
80 x 22 x 2.3 mm
Mean time between failure (MTBF)
1.6 million hours
Max. Operating Power
Read : 11.5W; Write : 11.5W
Power Consumption (Idle, PS3)
< 144mW
Power Consumption(PS4, L1.2)
< 85mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Warranty
1. Limited 5-years or 700TBW.
2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
